Turbo Classifier Machine

Home > products > Pulverizing System > Turbo Classifier Machine

Turbo Classifier Machine

SEND INQUIRY

SEARCH BY CONDITIONS

Details

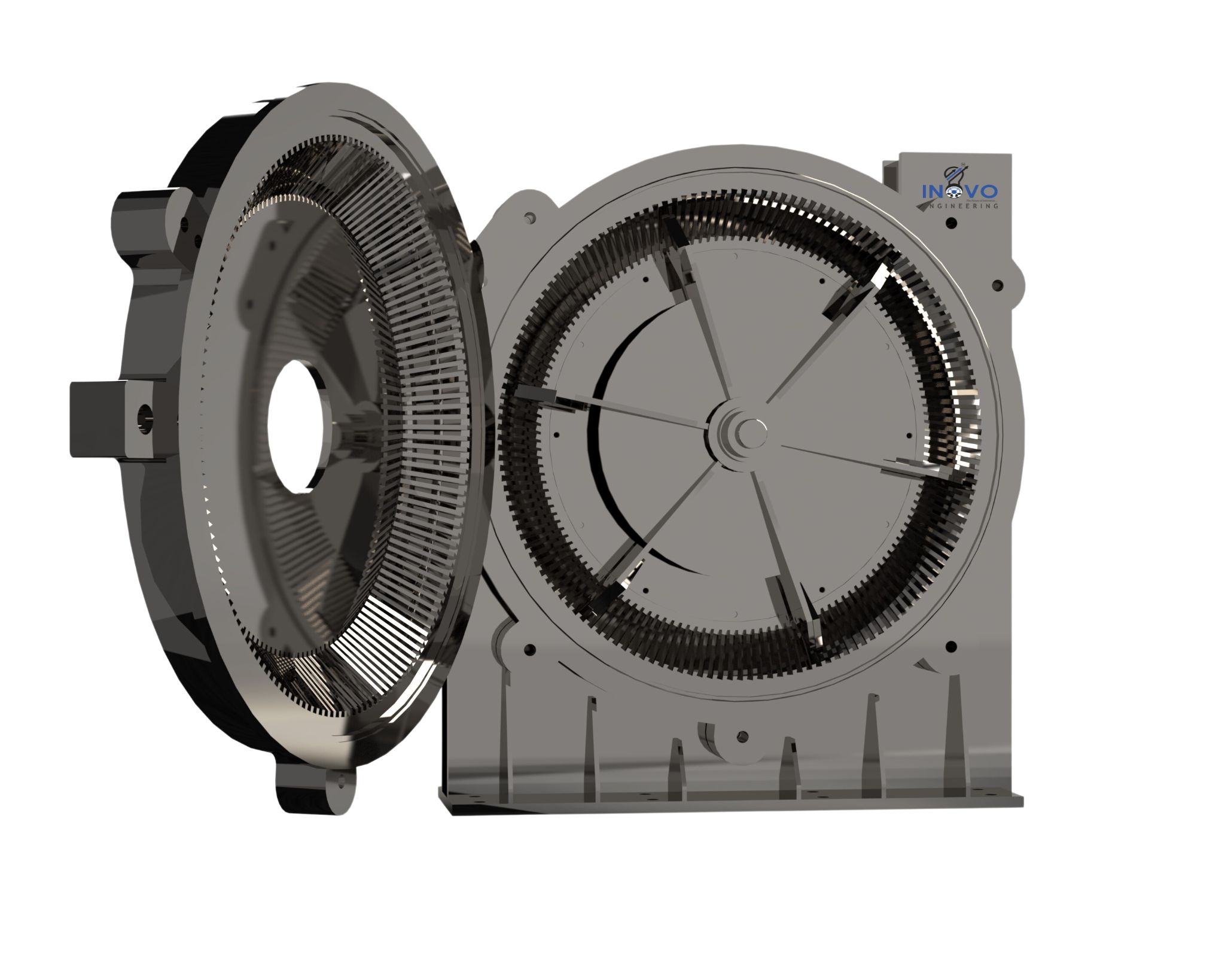

Turbo Classifier Mill is a fine grinding mill with integrated grinding, classifying, and conveying operations. Depending upon the material characteristics and parameters, output fineness can be anywhere upto 200 mesh. The equipment is a screen less pulverized. The equipment operates on principle of spiral classifications. The main shaft carries the rotor & blower fan. It has an adjustable gap plate. The blower fan sucks the air from the grinding chamber, and discharges the air and product to cyclone where the product is collected. The gap plate adjustment alters the amount of air flow which results in withdrawal from the grinding chamber. Once the gap plate is adjusted, output fineness is uniform. The equipment is recommended for soft and brittle material having MOH hardness up to 3. The feed size should not exceed 6 mm.

Turbo Classifier Mill is a fine grinding mill with integrated grinding, classifying, and

conveying operations. Depending upon the material characteristics and parameters, output

fineness can be anywhere upto 200 mesh. The equipment is a screen less pulverized. The

equipment operates on principle of spiral classifications. The main shaft carries the rotor &

blower fan. It has an adjustable gap plate. The blower fan sucks the air from the grinding

chamber, and discharges the air and product to cyclone where the product is collected. The

gap plate adjustment alters the amount of air flow which results in withdrawal from the

grinding chamber. Once the gap plate is adjusted, output fineness is uniform. The equipment

is recommended for soft and brittle material having MOH hardness up to 3. The feed size

should not exceed 6 mm.

● Screen less grinding

● Easy adjustable classifier plate

● Cool grinding

● High degree of fineness

● Grinding, classification & Conveying in one operation

● Sharp & narrow particle distribution

● Wide range of applications

·        Throughput Capacity & Motor Power

·        Adjustability & Airflow Rate

·        Feed Mechanism & Cut Point

·        Safety Features & Dust Collection

VIDEO

Industries
  • Plastic Industry
  • Foods Industry
  • Herbs Industry
  • Chemical Industry
Treatment
  • Pulverizing
Material Properties
  • Oily
  • Non-Oily
Fineness
  • 18-400 mesh
Capacity
  • 50-400 kg/hr
Production Methods
  • Turnkey
